Schneider Electric 9012GAW5 Industrial Grade Pressure Switch 30–275 Psi IP65
Product Highlights
The 9012GAW5, part of the Class 9012 Type GAW series, is a NEMA 4/13 pressure switch designed by Schneider Electric for global industrial applications. It achieves ±2% repeatability within a range of 30–275 psi, ensuring safe, efficient, and energy-efficient operation of critical equipment such as compressors, pumps, and hydraulic stations.
I. Core Parameters
• Model: Schneider Electric 9012GAW5
• Range: 30–275 psi (2.1–19 bar)
• Repeatability: ±2% of full scale
• Switching Logic: SPDT (1 C/O contact), 10 A @ 250 VAC
• Enclosure Rating: NEMA 4 & 13 / IP65, oil-proof, dust-proof, and water-jet-proof
• Wetted Materials: 316L stainless steel bellows, compatible with water, oil, and non-corrosive gases
• Electrical Connection: 3/4" NPT female conduit entry, terminal block wiring
• Mechanical Life: ≥ 1 million cycles
• Certifications: UL, cULus, CE, RoHS, compliant with IEC 60947-5-1
II. Typical Application Scenarios
1. Air Compressor System: Automatic start-stop control to prevent overpressure.
2. Industrial Pump: Dry-run protection to extend pump life.
3. Injection Molding Machine Hydraulic Station: Real-time pressure monitoring to ensure molding accuracy.
4. HVAC Chiller: High and low pressure alarms and coordinated shutdown.
III. Why Choose 9012GAW5
• Brand Endorsement—Schneider Electric's 180+ years of industrial experience and a global service network in over 100 countries.
• Designed for Harsh Environments—A wide operating temperature range of -30°C to +70°C, and fully tested for salt spray, vibration, and shock.
• Easy Installation—Top adjustment screws with anti-error locking and factory default settings ensure immediate installation and operation.
• One-Stop Supply—Global inventory, shipping within 48 hours; EcoStruxure™ Machine Expert provides digital commissioning support.

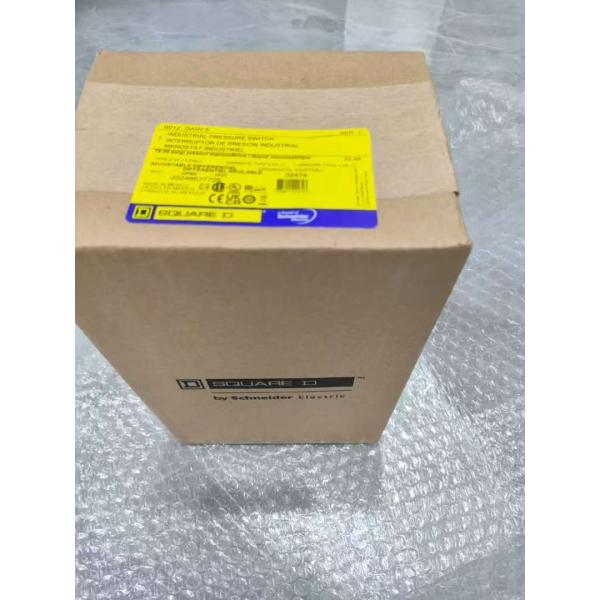

Product details pictures
